Overview

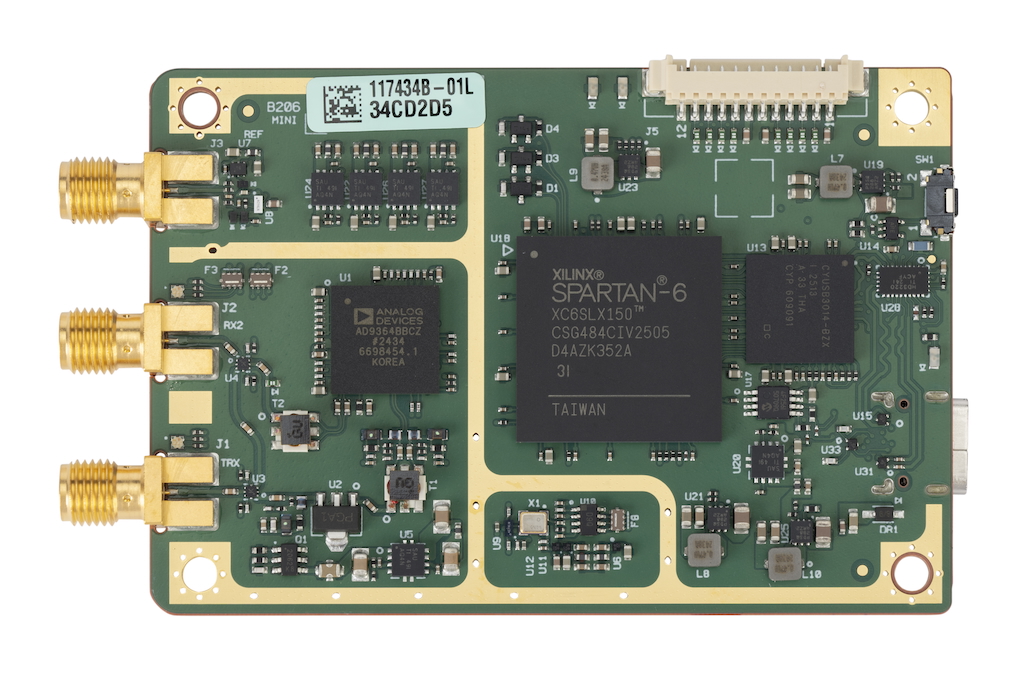

The USRP B206mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA, this flexible and compact platform is ideal for hobbyist, education, and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 Type C connection for streaming data to the host computer. The USRP B206mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. When used inside an enclosure, USRP B206mini-i supports an industrial temperate range. The USRP Hardware Driver™ (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

Features

• Wide frequency range: 70 MHz – 6 GHz
• Up to 56 MHz of instantaneous bandwidth
• Full duplex operation
• User-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA
• Fast and convenient bus-powered Type C USB 3.0 connectivity
• Synchronization with 10 MHz clock reference or PPS time reference
• GPIO and JTAG for control and debug capabilities
• 84.3 x 51.6 x 8.4 mm, 25 g form factor and weight
• 0 to 40°C operating temperature range
• USRP Hardware Driver™ (UHD) open-source software API version 4.9 or later

Block Diagram

USRP B2XXmini Block Diagram Click on image to enlarge

Additional Resources

Included in This Kit:

• USRP B206mini-i board only
• USB 3.0 cable
