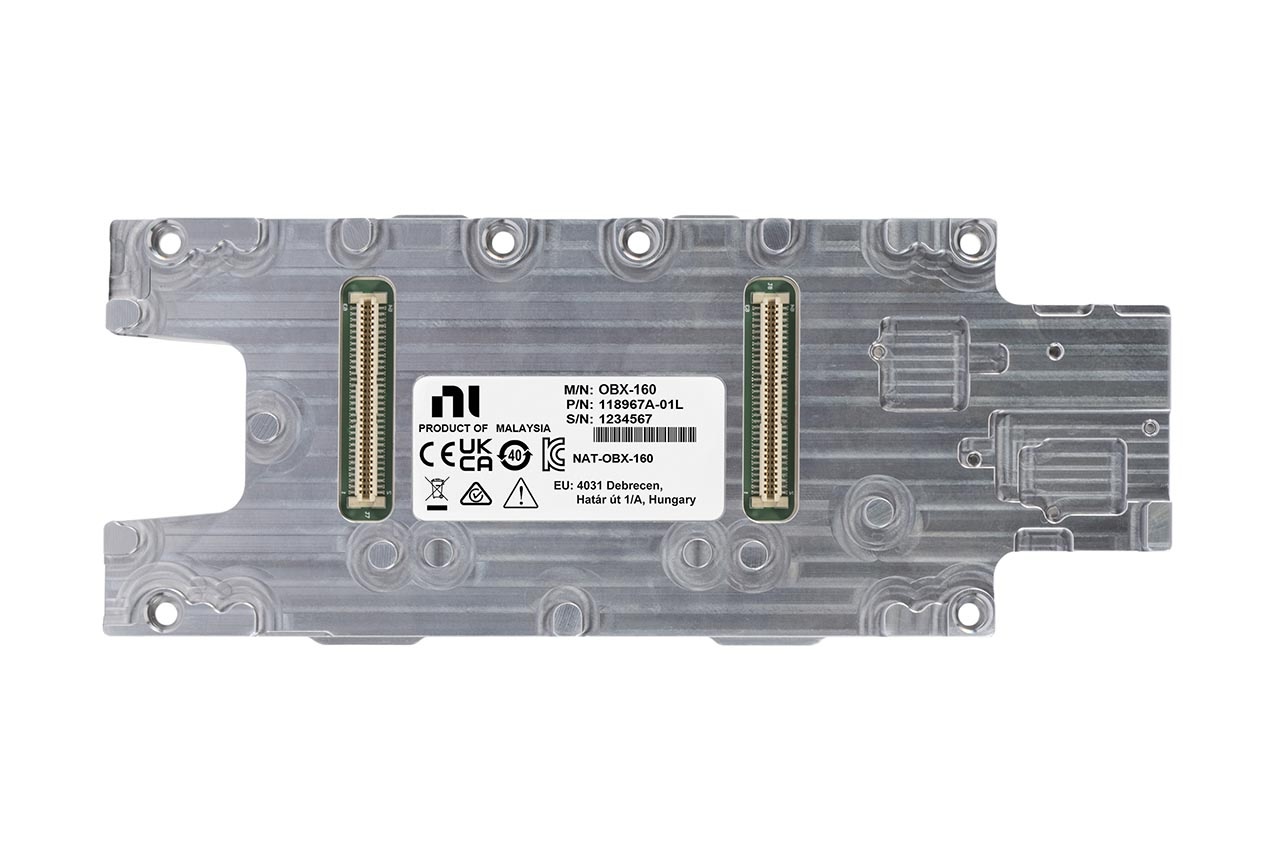

OBX 10-8400 MHz Rx/Tx (160 MHz, X Series only)
$2,746.00 USDOBX 160 USRP Daughterboard (10 MHz - 8.4 GHz, 160 MHz BW)
The OBX 160 daughterboard is a full-duplex wideband transceiver that covers frequencies from 10 MHz to 8.4 GHz with up to 160 MHz* of instantaneous bandwidth. Coherent and phase-aligned operation across multiple OBX daughterboards enables users to explore MIMO and direction finding applications. The OBX 160 daughterboard works interchangeably with other USRP daughterboards and is compatible with the USRP X300 Series devices.
* The OBX 160 transmitter path has 160 MHz of bandwidth throughout the full frequency range of the device; the receiver path has 84 MHz of bandwidth for center frequencies from 10 MHz to 500 MHz.
-
Overview
-
Overview
Overview
The OBX 160 daughterboard is a full-duplex wideband transceiver that covers frequencies from 10 MHz to 8.4 GHz with up to 160 MHz† of instantaneous bandwidth. Coherent and phase-aligned operation across multiple OBX daughterboards enables users to explore MIMO and direction finding applications. The OBX 160 daughterboard works interchangeably with other USRP daughterboards and is supported by the USRP Hardware Driver™ (UHD) software API for seamless integration into existing applications.
The flexible transceiver architecture features multiple reconfigurable RF signal paths to optimize performance across a wide frequency range. A down conversion stage in the transmitter path, and an up conversion stage in the receiver path, extends the tuning range of the main direct conversion stage to cover signals with a center frequency from 10 MHz to 500 MHz. The wide RF coverage of the OBX daughterboard is ideal for applications spanning all the most common bands of interest such as HF, VHF, cellular, radar, and Wi-Fi.
† The OBX 160 transmitter path has 160 MHz of bandwidth throughout the full frequency range of the device; the receiver path has 84 MHz of bandwidth for center frequencies from 10 MHz to 500 MHz.
-
Features
-
Features
Features
- Wide frequency range: 10 MHz – 8.4 GHz
- Wide bandwidth: up to 160 MHz†
- USRP compatibility: X300 Series
- RF shielding
- Full duplex operation with independent TX and RX frequencies
- Synthesizer synchronization for applications requiring coherent or phase-aligned operation
-
Additional Resources
-
Additional Resources
Features- 10 MHz to 8.4 GHz
- Up to 160 MHz Bandwidth†
- RF Shielding
- Phase Alignment Capable
Kit Contents- OBX 160 Daughterboard
- OBX-160 Installation Hardware (Washers, Nuts, Screws, Torx Key)
- 2x SMA F to SMPM F Cables
- SMPM Insertion/Extraction Tool
- Standoff Removal Wrench
- Safety, Environmental, and Regulatory Information (SERI)
Recommended for Use With
Additional Information
Overview
Overview
The OBX 160 daughterboard is a full-duplex wideband transceiver that covers frequencies from 10 MHz to 8.4 GHz with up to 160 MHz† of instantaneous bandwidth. Coherent and phase-aligned operation across multiple OBX daughterboards enables users to explore MIMO and direction finding applications. The OBX 160 daughterboard works interchangeably with other USRP daughterboards and is supported by the USRP Hardware Driver™ (UHD) software API for seamless integration into existing applications.
The flexible transceiver architecture features multiple reconfigurable RF signal paths to optimize performance across a wide frequency range. A down conversion stage in the transmitter path, and an up conversion stage in the receiver path, extends the tuning range of the main direct conversion stage to cover signals with a center frequency from 10 MHz to 500 MHz. The wide RF coverage of the OBX daughterboard is ideal for applications spanning all the most common bands of interest such as HF, VHF, cellular, radar, and Wi-Fi.
† The OBX 160 transmitter path has 160 MHz of bandwidth throughout the full frequency range of the device; the receiver path has 84 MHz of bandwidth for center frequencies from 10 MHz to 500 MHz.
Features
Features
- Wide frequency range: 10 MHz – 8.4 GHz
- Wide bandwidth: up to 160 MHz†
- USRP compatibility: X300 Series
- RF shielding
- Full duplex operation with independent TX and RX frequencies
- Synthesizer synchronization for applications requiring coherent or phase-aligned operation
Additional Resources
- 10 MHz to 8.4 GHz
- Up to 160 MHz Bandwidth†
- RF Shielding
- Phase Alignment Capable
- OBX 160 Daughterboard
- OBX-160 Installation Hardware (Washers, Nuts, Screws, Torx Key)
- 2x SMA F to SMPM F Cables
- SMPM Insertion/Extraction Tool
- Standoff Removal Wrench
- Safety, Environmental, and Regulatory Information (SERI)
