USRP N200 USRP N200
782746-01
QTY:

USRP N200

$1,715.00 USD
782746-01
QTY:

USRP N200 Kit (USRP N200, 2 SMA-Bulkhead RF Cables, Ethernet Cable, Power)

The USRP N200 offers high-bandwidth, high-dynamic range processing capability. The Gigabit Ethernet interface of the USRP N200 allows high-speed streaming capability up to 50 MS/s in both directions (8-bit samples). These features, combined with plug-and-play MIMO capability make the USRP N200 an ideal candidate for software defined radio systems with demanding performance requirements.

Overview

Overview

The USRP N200 series provides high-bandwidth, high-dynamic range processing capability. The product architecture includes a Xilinx® Spartan® 3A-DSP 1800 FPGA, 100 MS/s dual ADC, 400 MS/s dual DAC and Gigabit Ethernet connectivity to stream data to host processors. A modular design allows the USRP N200 to operate from DC to 6 GHz. An expansion port allows multiple USRP N200 series devices to be synchronized and used in a MIMO configuration. An optional GPSDO module can also be used to discipline the USRP N200 reference clock to within 0.01 ppm of the worldwide GPS standard. The USRP N200 can stream up to 50 MS/s to and from host applications, and users can implement custom functions in the FPGA fabric, or in the on-board 32-bit RISC softcore. The FPGA offers the potential to process up to 100 MHz of RF bandwidth in both the transmit and receive directions. The FPGA firmware can be reloaded through the Gigabit Ethernet interface.

Additional Resources

Additional Resources

Included in This Kit:

  • USRP N200
  • 1 Gigabit Ethernet Cable
  • Power Supply
  • 2 SMA-Bulkhead Cables

Additional Resources:

Recommended Daughterboards and Accessories:

Overview

The USRP N200 series provides high-bandwidth, high-dynamic range processing capability. The product architecture includes a Xilinx® Spartan® 3A-DSP 1800 FPGA, 100 MS/s dual ADC, 400 MS/s dual DAC and Gigabit Ethernet connectivity to stream data to host processors. A modular design allows the USRP N200 to operate from DC to 6 GHz. An expansion port allows multiple USRP N200 series devices to be synchronized and used in a MIMO configuration. An optional GPSDO module can also be used to discipline the USRP N200 reference clock to within 0.01 ppm of the worldwide GPS standard. The USRP N200 can stream up to 50 MS/s to and from host applications, and users can implement custom functions in the FPGA fabric, or in the on-board 32-bit RISC softcore. The FPGA offers the potential to process up to 100 MHz of RF bandwidth in both the transmit and receive directions. The FPGA firmware can be reloaded through the Gigabit Ethernet interface.

Additional Resources

Included in This Kit:

  • USRP N200
  • 1 Gigabit Ethernet Cable
  • Power Supply
  • 2 SMA-Bulkhead Cables

Additional Resources:

Recommended Daughterboards and Accessories:

Compatible Products

The USRP N210 is an...

$1,943.00 USD
QTY:

The BasicTX daughterboard provides a...

$85.00 USD
QTY:

The BasicRX provides a simple,...

$85.00 USD
QTY:

The LFTX utilizes high-speed operational...

$85.00 USD
QTY:

The LFRX utilizes high-speed operational...

$85.00 USD
QTY:

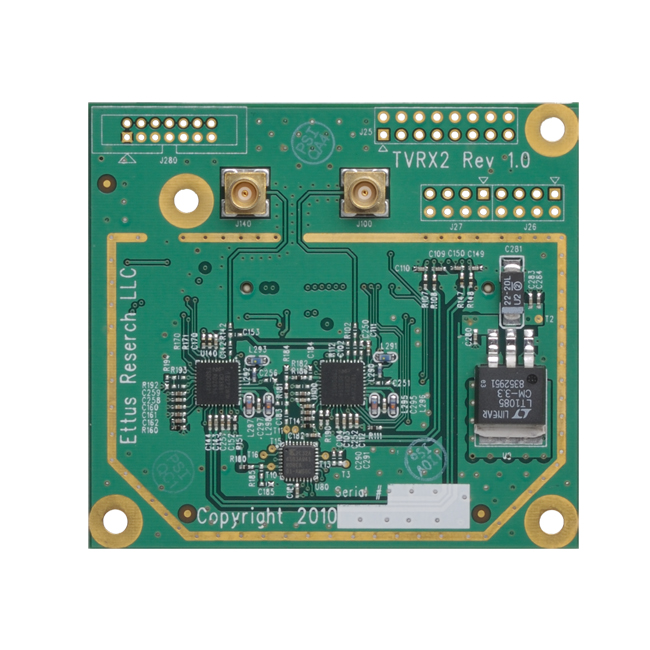

The TVRX2 daughterboard includes two...

$229.00 USD
QTY:

The DBSRX2 is a configurable...

$172.00 USD
QTY:

The WBX is a wide...

$543.00 USD
QTY:

The SBX is a wide...

$543.00 USD
QTY:

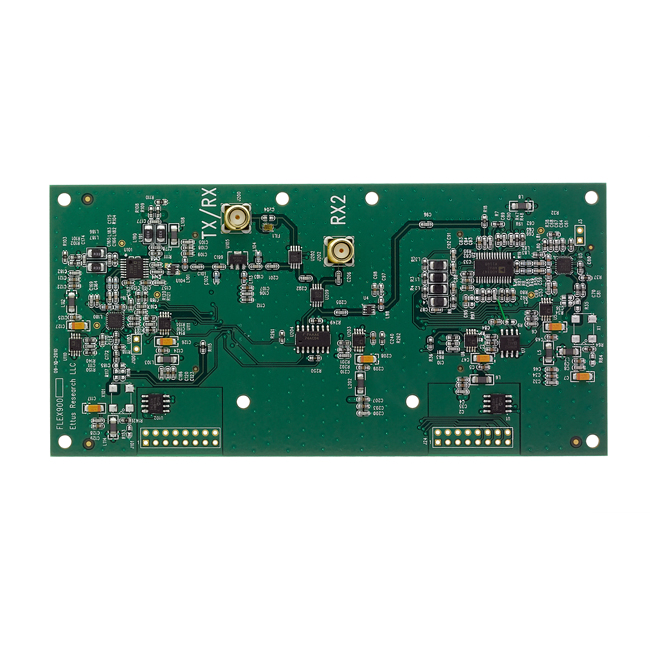

The RFX900 is a high-performance...

Includes one LP0410 400 MHz...

$51.00 USD
QTY:

Includes one LP09650 850 MHz...

$51.00 USD
QTY:

Includes one VERT400 144 MHz,...

$72.00 USD
QTY:

Includes one VERT900 824 to...

$41.00 USD
QTY:

Includes one VERT2450 Dual Band...

$41.00 USD
QTY:

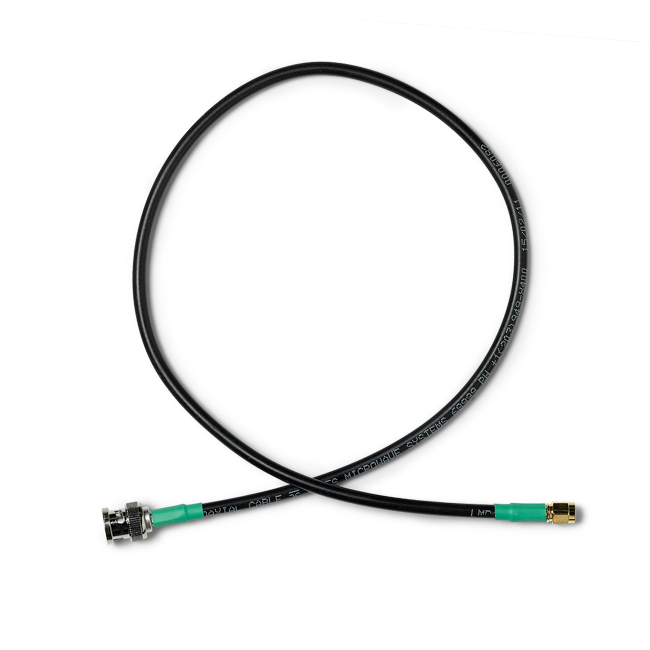

Includes one SMA-M to BNC-M...
